RECOVERY BED -3 FUNCTION

3 FUNCTION RECOVERY BED, MANUAL

Category: Hospital Furniture

Model No:SMI-203

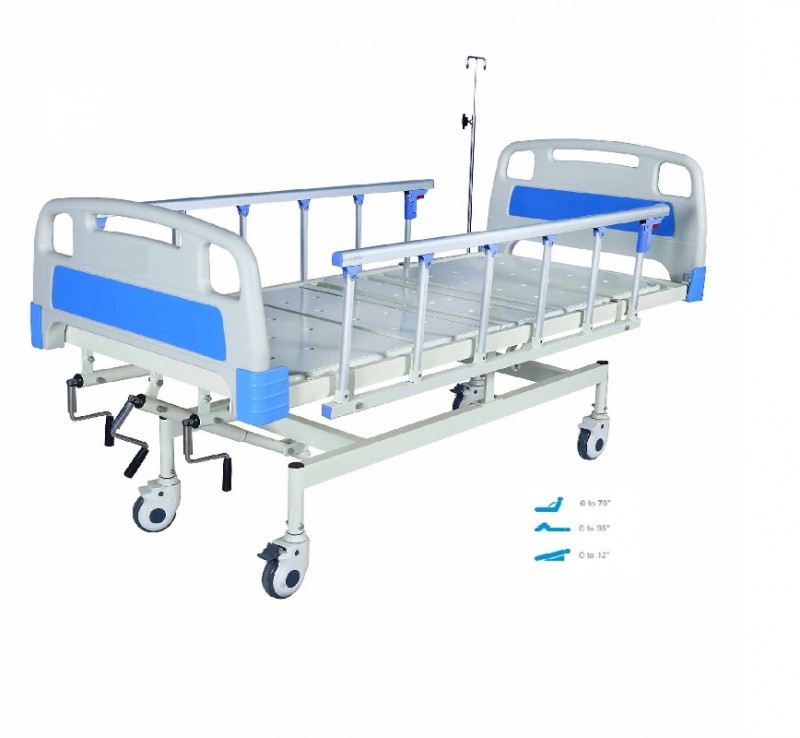

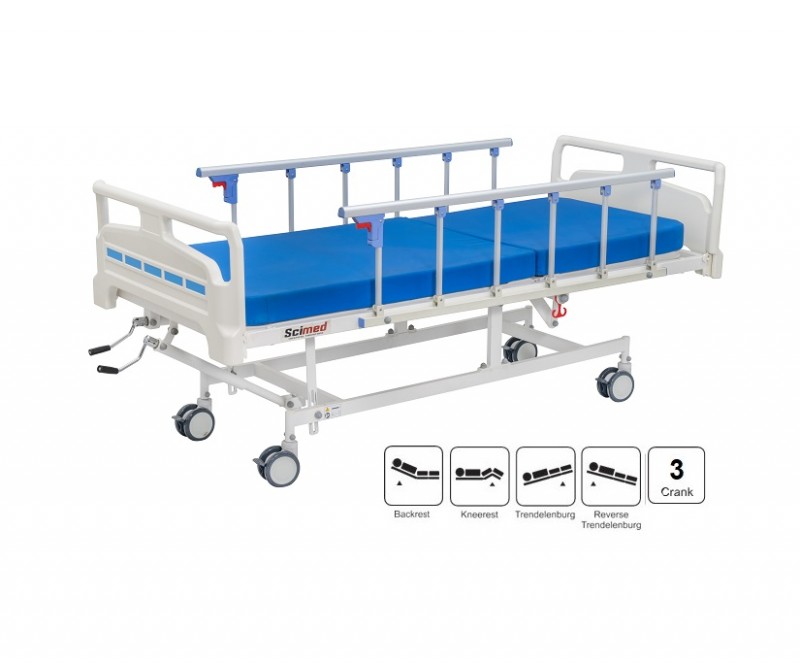

SMI-203 ICU Beds are 3 function setup that allows free adjustment of Backrest, knee rest and Trendlenburg & Reverse Trendlenburg positions. Mechanically operated through individual smooth crank system, making it a perfect choice for critical care and post recovery areas. Armed with an elegant design and smoothly operated 2 piece Collapsible Safety side Rails, it not only offers safety and hygiene but also brings treatment areas to life. The bed is engineered for trouble free service life with a tough framework, strong support linkages and high grade synthetic castors.

Enquiry Now

Features & Specifications:

Overall Size: L 2190mm × W 980mm × H 600mm
Frame Work: Made from high quality Epoxy Coated tubular CRCA steel finish.
Platform Top: 4 Section Perforated Platform top made from high Quality Epoxy Coated CRCA Sheet of 18swg, with integrated design.
Head/ Foot Panels: Polymer moulded head and foot end panels, easily removable without using any tools.
Positions: Back rest tilting 0-70º, knee rest tilting 0-35°, trendelenburg tilting 0-12°, Reverse trendelenburg tilting 0-12° adjustable through ultra-smooth crank system with individually foldable handles.
Safety Side Rails: Bed Comes 2 Pieces Full Length Collapsible safety side panels.
Leg support: Bed Platform is duly supported on Trolley Base mounted with 125mm Dia. Diagonally Locking castors.
Mattress: 4 section PU mattress of 100 thickness and 32kg density foam, duly covered with PU Rexine cover which is flexible, tear resistant, anti-static, anti-bacteria, flame-retardant, non-absorbing and easily cleanable with hospital-grade disinfection products.
Urine Bag Holders: Equipped with 2 hooks for holding Urine bags on both sides.
IV Pole: Bed is provided with 4 locations to mount IV Pole.
Load Capacity: Beds designed for patient weight of 150kg and max loading capacity of 180kg.
Finishing: All metal parts of bed is duly finished in high quality epoxy powder coating finish which is resistant to rust and also suitable to be used with hospital grade disinfectants.

Positions by hand Remote:	Optional Accessories:
Backrest elevation	SS Telescopic IV Pole
Knee rest elevation	X-Ray Translucent Backrest.
Trendelenburg	Central Locking Wheels
Reverse trendelenburg

Care instructions

Wipe with soft thick cloth. Avoid using bleach when washing upholstery. Do not keep hot items directly on a furniture surface; instead use a hot pad or coasters. To protect your furniture from fading, avoid keeping your furniture next to windows and other places where it can be exposed to direct sunlight. Cleaning your furniture items regularly will help you maintain them for a long time.
