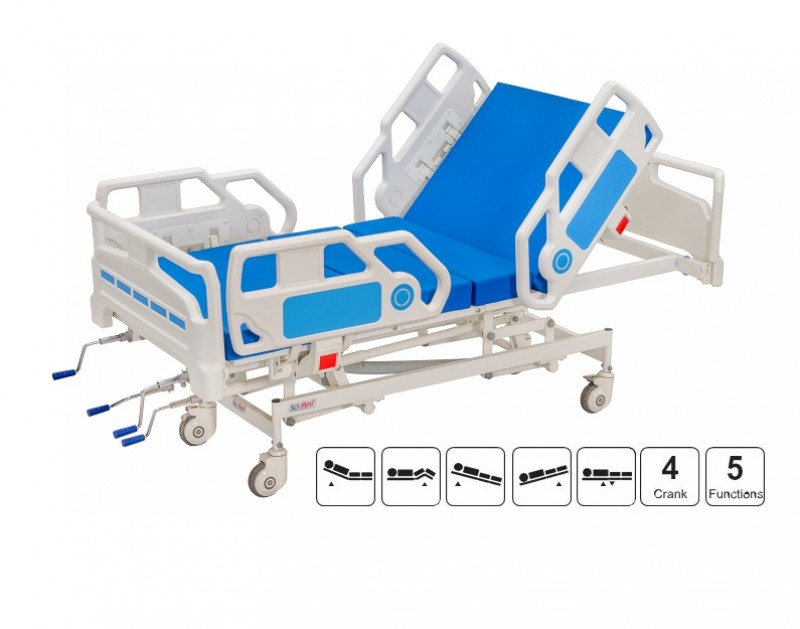

MANUAL ICU BED, 5 FUNCTION

5 FUNCTION ICU BED, MANUAL

Category: Hospital Furniture

Model No:SMI-102

Presenting the all new SMI-102 Series ICU Bed, a thoughtfully crafted variant designed for the challenging healthcare environments, keeping caregiver’s all needs in mind. It is packed with the full set of clinical positions like Height, Backrest, Knee rest, Trendelenburg, Reverse Trendelenburg positions on individual smooth crank systems, making it a perfect choice for critical care and high dependency areas. Armed with an elegantly designed and smoothly operated spilt type polymer molded safety side rails, it not only offers safety and hygiene but also brings treatment areas to life. The bed is engineered for trouble free service life with a tough frame design, strong support linkages and high grade synthetic castors.

Enquiry Now

Product Description

Features & Specifications:

Overall Size: L 2190mm × W 980mm × H 480-710mm
Frame Work: Made from high quality Epoxy Coated tubular CRCA steel finish.
Platform Top: 4 Section Perforated Platform top made from high Quality Epoxy Coated CRCA Sheet of 18swg with integrated design.
Head/ Foot Panels: Polymer moulded head and foot end panels, easily removable without using any tools.
Positions: Back rest tilting 0-70º, knee rest tilting 0-35°, Hi/Low Position, trendelenburg tilting 0-12°, Reverse trendelenburg tilting 0-12° adjustable through ultra-smooth crank system with individually foldable handles.
Safety Side Rails: Bed Comes Four Pieces polymer moulded split type safety side panels with Angle Indicators.
Leg support: Bed Platform is duly supported on Trolley Base mounted with 125mm Dia. Diagonally Locking castors.
Mattress: 4 section PU mattress of 100 thickness and 32kg density foam, duly covered with PU Rexine cover which is flexible, tear resistant, anti-static, anti-bacteria, flame-retardant, non-absorbing and easily cleanable with hospital-grade disinfectants.
Urine Bag Holders: Equipped with 2 hooks for holding Urine bags on both sides.
IV Pole: Bed is provided with 4 locations to mount IV Pole.
Load Capacity: Beds designed for patient weight of 150kg and max loading capacity of 200kg.
Finishing: All metal parts of bed is duly finished in high quality epoxy powder coating finish which is resistant to rust and also suitable to be used with hospital grade disinfectants.

Positions by hand Remote:	Optional Accessories:
Hi/Low Height Adjustment	SS Telescopic IV Pole
Backrest elevation	X-Ray Translucent Backrest
Knee rest elevation	Central Locking Wheels
Trendelenburg
Reverse trendelenburg
