Hospital ICU Bed

7 FUNCTION ICU BED- ELECTRIC – With Battery Backup

Category: Hospital Furniture

Model No:SMI – 99

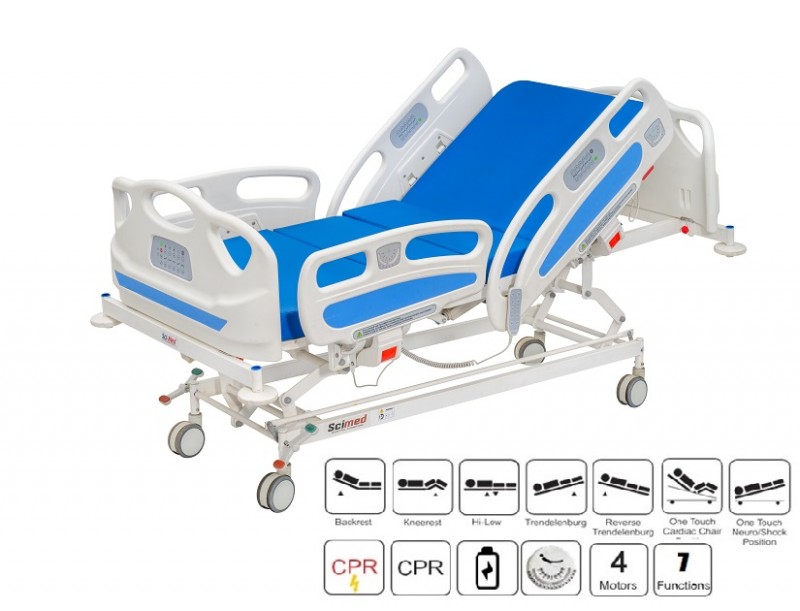

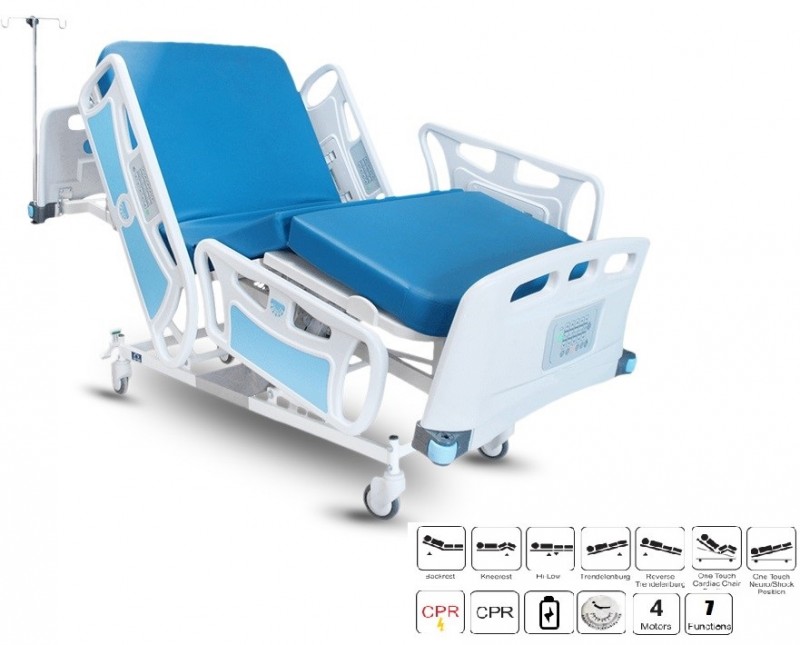

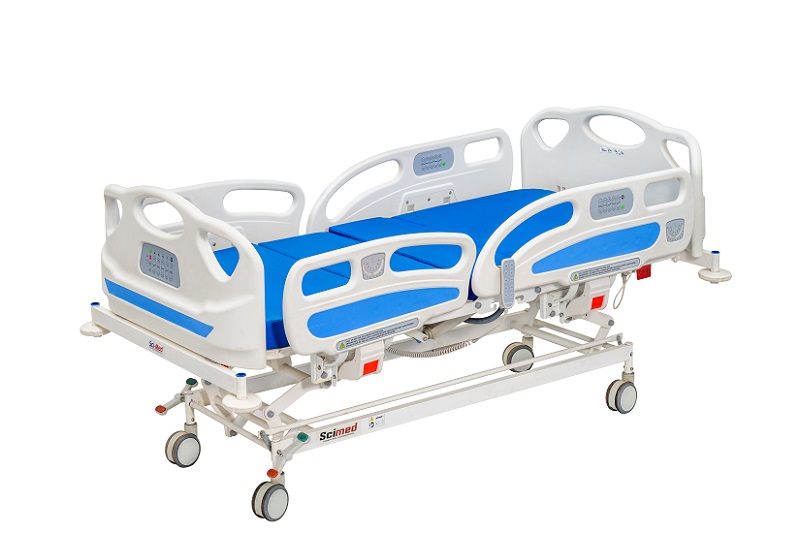

SMI-99 Advance ICU Beds are special hospital beds designed for ICUs to take care of critical patients. These ICU Beds combine smart ergonomics with advanced technology and intuitive operation, thus provide both safety and comfort to the patients and caregivers alike.

Major Features Include: Backrest, Knee rest, Height Adjustment, Trendelenburg/Reverse Trendelenburg, Cardiac Chair Position, Neuro Position, Zero Level Position maneuverable by four separate linear actuators system which are operated through a hand held remote control unit with additional Nursing Control Panel embedded at the Bed end panel and 2 additional integrated controllers on the upper Safety Side rails for Nursing Staff & the Patients.

Enquiry Now

Product Description

Features & Specifications:

Overall Size: L 2310mm × W 1080mm × H 450-750mm
Platform Size: L 2000mm x W 850mm
Frame Work: Made from high Quality Epoxy Coated Tubular CRCA Steel Finish that is highly Resistant to Rust and most of the Hospital Grade Disinfectants.
Platform Top: 4 Section Perforated Platform top made from high Quality Epoxy Coated CRCA Sheet of 18swg, with integrated design on sides.
Head/ Foot Panels: Polymer moulded head and foot End Panels, the Leg End Panel comes with Embedded Nursing Controller, both are easily Removable without using any tools.
Positions: Motorized Adjustment for Back Rest Tilting 0-70º, Knee Rest Tilting 0-35°, Hi/ Low Position, Trendelenburg Tilting 0-12°, Reverse Trendelenburg Tilting 0-12°, one touch button for Cardiac Chair Position & Neuron Position.
CPR Function: Bed comes with Quick release CPR function in both Electric & Mechanical format.
Safety Side Rails: Bed Comes 4 Pieces Polymer Moulded Split Type Safety Side Panels with 2 upper Side Panels Comes With Embedded Patient Control Panels.
Leg support: Bed Platform is duly supported on Trolley Base mounted with 125mm Dia. Noiseless Luxury castors with central Braking system
Battery Backup: Bed Comes with Integrated Battery Back with Auto Charge Function.
Mattress: Bed Comes with 4 section PU mattress of 100 thickness and 32kg density foam, duly covered with PU Rexine cover which is flexible, tear resistant, anti-static, anti-bacteria, flame-retardant, non-absorbing and easily cleanable with hospital-grade disinfection Products.
Patient Safety: Auto Safety Cut off Facility in Control Panels.
Urine Bag Holders: Bed is Equipped with Urine Bag Holders on Both Sides.
IV Pole: Bed is Provided with 4 locations to mount IV Pole & Comes with Heavy Duty Telescopic IV Pole.
Load Capacity: Bed is Designed for Patient Weight of 180kg and Max Loading Capacity of 230kg.
Finishing: All Metal Parts of the Bed is Duly Finished in High Quality Epoxy Powder Coating Finish which is Resistant to Rust and also Suitable to be Used with Hospital Grade Disinfectants.
