7 FUNCTION ICU BED

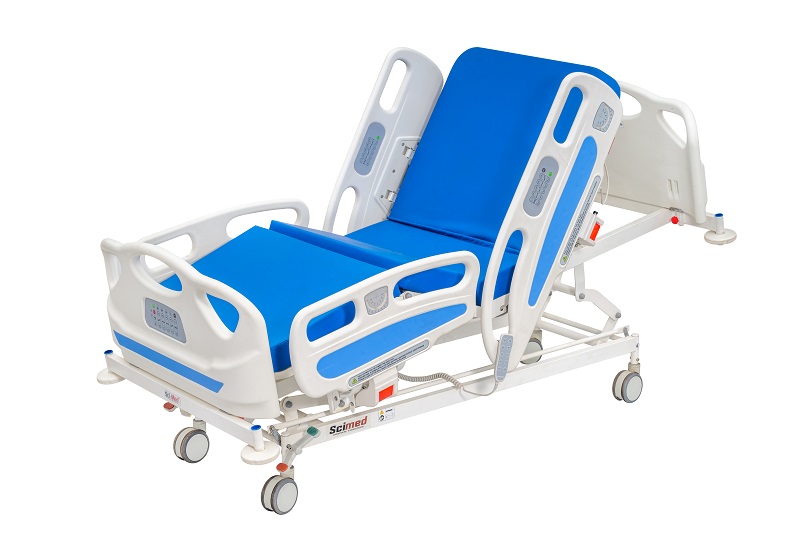

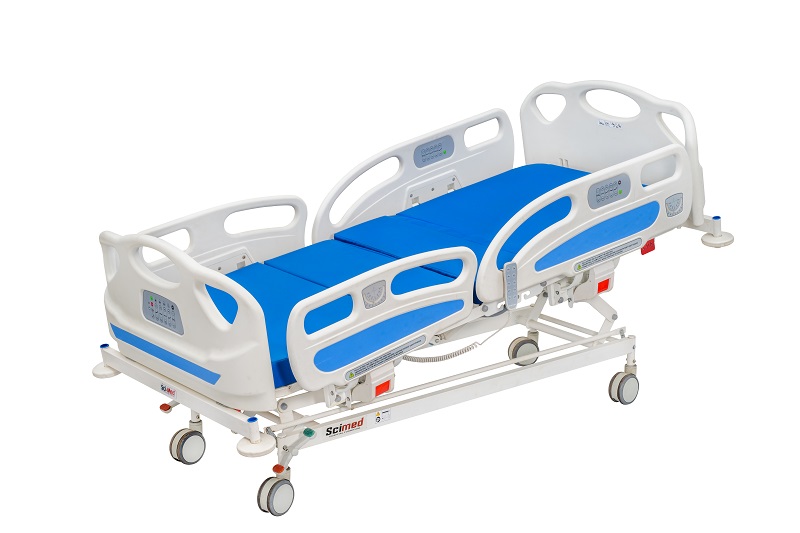

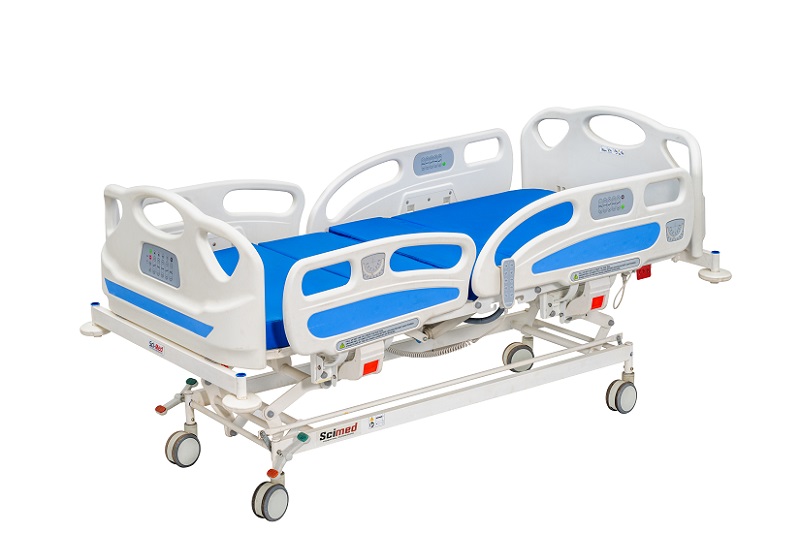

7 Function ICU Bed, Electric ( X-Ray Compatible with Battery Backup)

Category: Hospital Furniture

Model No:SMI-98

SMI-98 Advance 7 Function ICU Beds are special hospital beds that are designed for CCU & ICU Units for the patients that requires Critical care. These ICCU Beds combine smart ergonomics with advanced technology and intuitive operation, thus provide both safety and comfort to the patients and caregivers alike.

Major Features Include: X Ray Compatible Backrest panel with cassette Holder, Central Locking Wheels, Bed Extender, Under Bed Lighting, Positions like Backrest, Kneerest, Hi/Low Height Adjustment, Trendelenburg/Reverse Trendelenburg, Cardiac Chair, Neuro and Zero Level Position Maneuverable by Four Separate Linear Actuators System Which is Operated Through a Hand Held Remote Control unit with Additional Functions on Nursing Control Panel Embedded at the Bed End Foot Panel and 2 Additional Integrated Controllers on both the Upper Safety Side Rails for The Nursing Staff & the Patient.

Enquiry Now

Product Description

Features & Specifications:

Overall Size: L2310 × W1040 × H450-750 mm
Platform Size: L2000 x W 850 mm
Frame Work: Made from high Quality Epoxy Coated Tubular CRCA Steel Finish That is Highly Resistant to Rust and Most of the Hospital Grade Disinfectants.
Platform Top: 4 Section Perforated Platform Top Made From High Quality Epoxy Coated CRCA Steel Sheet with Integrated Design.
X Ray Backrest: The Backrest Panel of the bed is X Ray Compatible made from Laminated Compressed Panel with X Ray Cassette Holder on the Back Side.
Head/ Foot Panels: Polymer Moulded Head and Foot End Panels, The Bed End Panel on Foot Side Comes with Embedded Nursing Controller (ACP), both Panels are Easily Removable without using any tools.
Positions: Motorized Adjustment for Backrest Ttlting 0-70º, Kneerest Tilting 0-35°, Hi/ Low Height Adjustment Position, Trendelenburg & Reverse Trendelenburg Tilting 0-12°, one Touch Button for Cardiac Chair Position, Neuron Position & Zero Position.
CPR Function: Bed Comes With Quick Release CPR Function in both Electric & Mechanical format.
Safety Side Rails: Bed Comes Four Pieces Polymer Moulded Safety Side Rails, 2 Upper Side Panels comes with Integrated Controller for the Patient control.
Leg support: Bed Platform is Duly Supported on Trolley Based Frame mounted with 125mm dia. Castors with Central locking system.
Battery Backup: Bed comes with Integrated Battery Backup System with Auto Charge Function.
Mattress: Bed comes with 4 section PU mattress, Duly Covered with PU Rexine Cover which is Flexible, Tear Resistant, Anti-Static, Anti-Bacteria, Flame-Retardant, Non-Absorbing and Easily Cleanable.
Bed Extender: Bed Comes with Extension Function For upto 180mm Length for Tall Patient.
Patient Safety: Auto Safety Locking Function on Nursing Control Panel.
Urine Bag Holders: Bed is Equipped with Urine bags Holders on Both the Sides of the bed.
IV Pole: Bed is Provided with 4 locations to Mount IV Pole on all the Corners & Comes with Telescopic IV Pole.
Load Capacity: Bed is Designed for Patient Weight of 180kg and Max Loading Capacity of 230kg.
Finishing: All metal parts of bed is duly finished in high quality epoxy powder coating finish which is resistant to rust.
