5 Function ICU Bed

5 Function ICU Bed, Electric- Basic

Category: Hospital Furniture

Model No:SMI-101

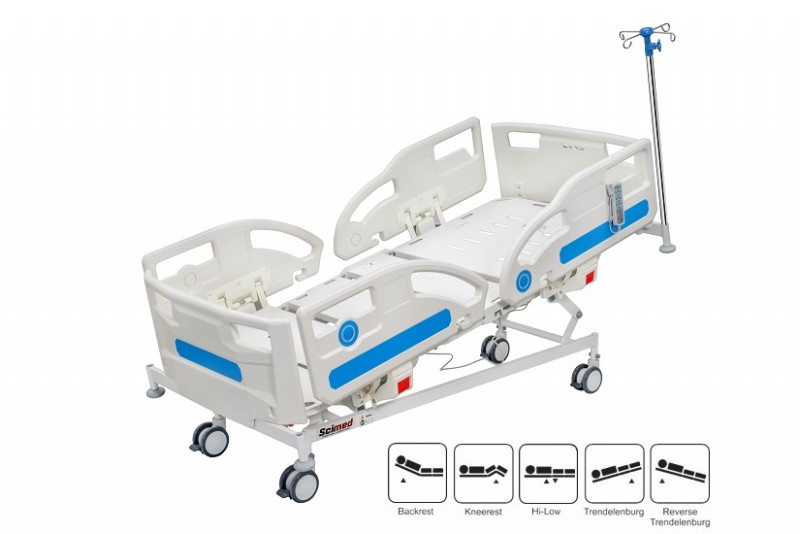

SMI-101 Basic ICU beds are Equipped with world-leading 4 Motor actuator system, this bed is designed and built integrating state-of-the-art technologies to enhance the patient’s comfort and improve caregiver’s efficiency. Its outstanding performance is complemented by its ergonomic features and best-in-class quality Specially Designed for ICU units. These Electric beds are mounted with Full length polymer moulded 4 pcs split type safety side rails which ensures convenience & Safety for the patient, comes with a hand held remote control unit.

Enquiry Now

Product Description

Features & Specifications:

Overall Size: L2280 × W1040 × H450-750mm
Platform Size: L2000 x W860mm
Frame Work: Made from high quality Epoxy Coated tubular CRCA steel finish that is highly resistant to rust and most of the hospital grade disinfectants.
Platform Top: 4 Section Perforated Platform top made from high Quality Epoxy Coated CRCA Sheet with integrated design on sides.
Head/ Foot Panels: Polymer moulded head and foot end panels, easily removable without using any tools.
Positions: Motorized Adjustment for Back rest tilting 0-70º, knee rest tilting 0-35°, Hi/Low Position, trendelenburg tilting 0-12°, Reverse trendelenburg tilting 0-12°.
Safety Side Rails: Bed Comes Four Pieces polymer moulded split type safety side panels with Angle Indicator.
Leg support: Bed Platform is duly supported on Trolley Base mounted with 125mm Dia. Noiseless Luxury castors with individual locking system

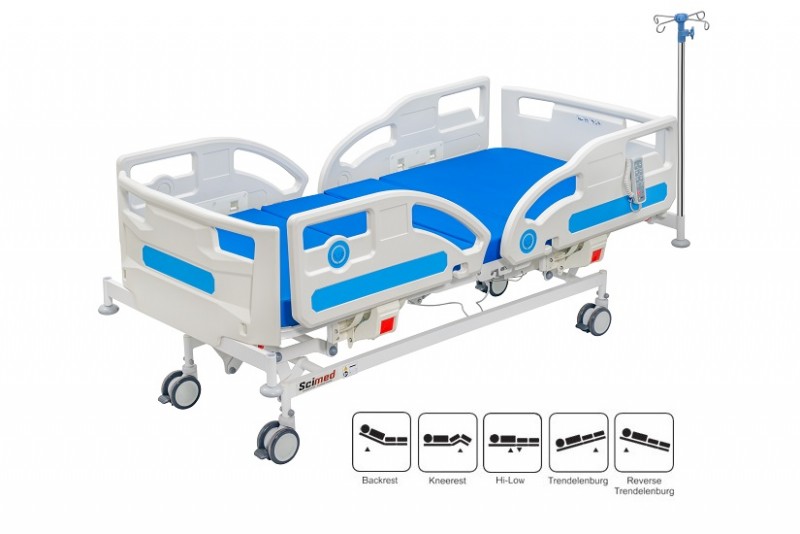

Mattress: Bed Comes with 4 section PU mattress duly covered with PU Rexine cover which is flexible, tear resistant, anti-static, anti-bacteria, flame-retardant, non-absorbing and easily cleanable with hospital-grade disinfection.
Urine Bag Holders: Equipped with 2 hooks for holding Urine bags on both sides.
IV Pole: Bed is provided with 4 locations to mount IV Pole &Comes with Stainless Steel Telescopic IV Pole.
Load Capacity: Beds designed for patient weight of 180kg and max loading capacity of 230kg.
Finishing: All metal parts of bed is duly finished in high quality epoxy powder coating finish which is resistant to rust.

Positions by hand Remote:	Optional Accessories:
Hi/Low Height Adjustment	Nursing Control panel
Backrest elevation	X-Ray Translucent Backrest
Knee rest elevation	Dual side manually operated CPR
Trendelenburg	Battery Backup System
Reverse trendelenburg
