5 Function ICU Bed

5 FUNCTION ICU BED, MANUAL ECONOMY

Category: Hospital Furniture

Model No:SMI-103

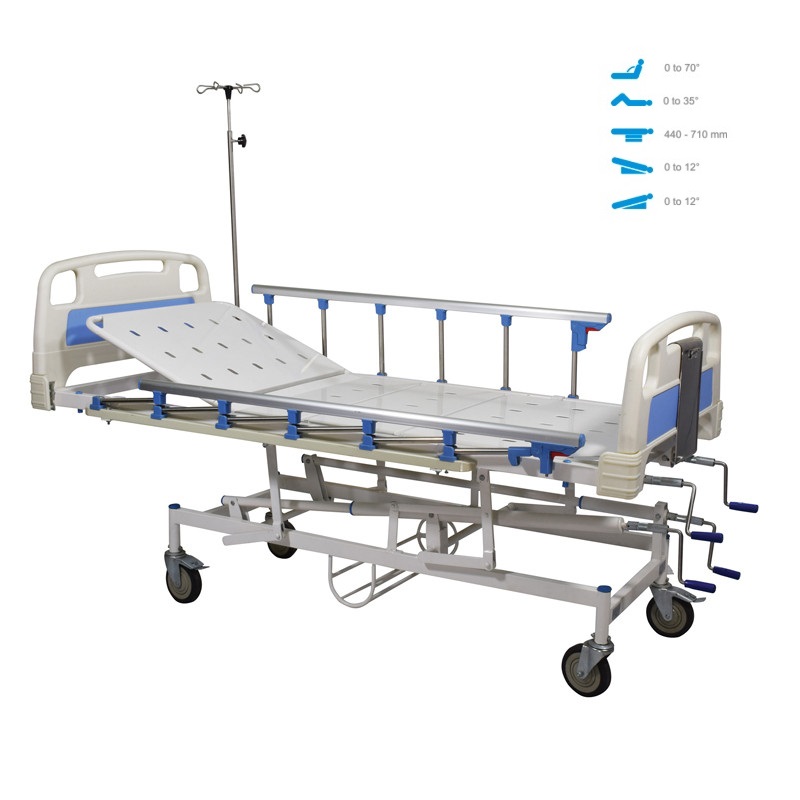

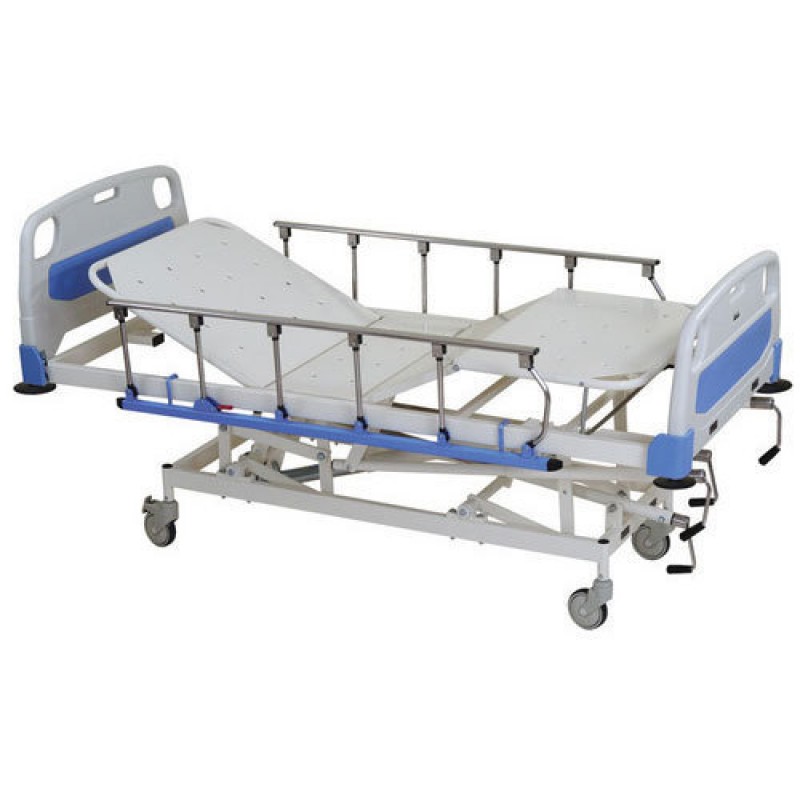

SMI-103 Series is the adjustable manual 5 function hospital bed designed to deliver best quality and safety at an affordable price, these ICU Beds has mechanical setup that is packed with the full set of clinical positions like Height, Backrest, Knee rest, Trendelenburg, Reverse Trendelenburg positions on individual ultra-smooth crank mechanism, these ICU beds are beneficial to clinics, nursing homes, and hospitals. Comes with 2pc Collapsible Safety Side rails that helps to secure the patient and also enhance the overall comfort. These bed is mounted on synthetic wheels for easy mobility during any emergency.

Enquiry Now

Product Description

Features & Specifications:

Overall Size: L 2190mm × W 980mm × H 480-710mm
Frame Work: Made from high quality Epoxy Coated tubular CRCA steel finish that is highly resistant to rust.
Platform Top: 4 Section Perforated Platform top made from high Quality Epoxy Coated CRCA Sheet of 18swg.
Head/ Foot Panels: Polymer moulded head and foot end panels, easily removable without using any tools.
Positions: Back rest tilting 0-70º, knee rest tilting 0-35°, Hi/Low Position, trendelenburg tilting 0-12°, Reverse trendelenburg tilting 0-12° adjustable through ultra-smooth crank system with individually foldable handles.
Safety Side Rails: Bed Comes 2 Pieces Full Length Collapsible safety side panels.
Leg support: Bed Platform is duly supported on Trolley Base mounted with 125mm Dia. Diagonally Locking castors.
Mattress: 4 section PU mattress of 100 thickness and 32kg density foam, duly covered with PU Rexine cover which is flexible, tear resistant, anti-static, anti-bacteria, flame-retardant, non-absorbing an Easily cleanable.
Urine Bag Holders: Comes with 2 hooks for Urine bags on both sides.
IV Pole: Bed is provided with 4 locations to mount IV Pole.
Load Capacity: Beds are designed for patient weight of 180kg and max Loading Capacity of 220kg.
Finishing: All metal parts of bed is duly finished in high quality epoxy Powder Coating finish, Resistant to rust.

Care instructions

Wipe with soft thick cloth. Avoid using bleach when washing upholstery. Do not keep hot items directly on a furniture surface; instead use a hot pad or coasters. To protect your furniture from fading, avoid keeping your furniture next to windows and other places where it can be exposed to direct sunlight. Cleaning your furniture items regularly will help you maintain them for a long time.
