Model No:SMI-129

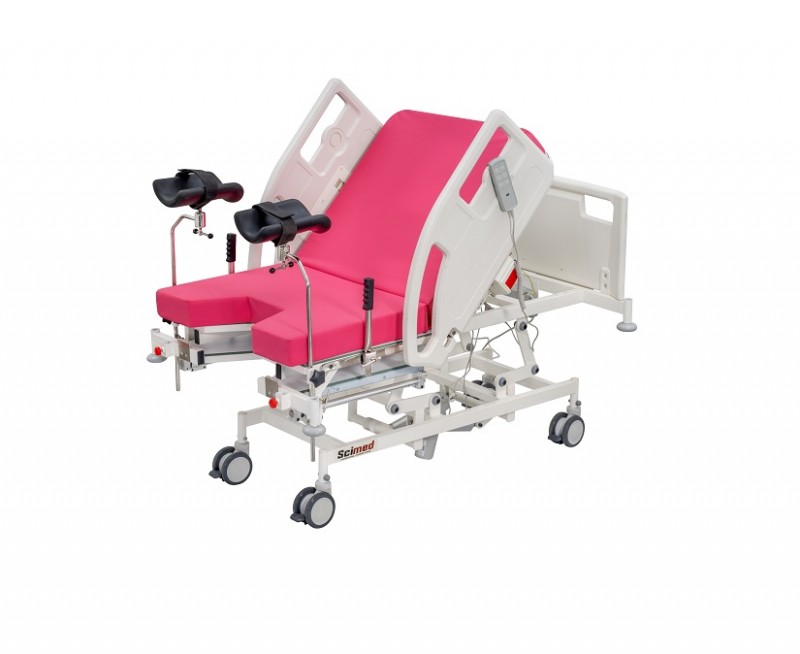

ELECTRIC LDRP BED (ALL ELECTRIC WITH ABS PANELS)

CODE: SMI-129

This versatile motorized bed specially made for Labour, Delivery, Recovery, and Postpartum enables the obstetrician to deliver the promise of safe birthing and recovery with a carefree experience. The bed is designed to provide comfort and safety for the mother during childbirth as well as the obstetrician to assist in the hospital delivery. The bed is provided with handset control for easy adjustment of backrest, height, trendelenburg and reverse Trendelenburg functions.

Product Description

FEATURES:

  • Motorized Adjustment of backrest, height, trendelenburg & reverse trendelenburg
  • Wired handset control for patients
  • Polymer moulded split type safety side rails
  • Easily removable polymer moulded head & foot panels
  • Four corner safety rubber buffers
  • Removable SS Tray



STANDARD SPECIFICATIONS

  • Advance Liner actuator system with IP54 Liquid splash protection.
  • Wired Handset Control for Patients
  • Polymer moulded Head / Foot Panels with corner buffer.
  • Polymer Moulded Two Piece Safety Side Rails.
  • Tubular framework mounted on 125mm noiseless castors.( Central Locking option also available)
  • Three-section top made of compressed laminated sheet covered with 3 section Mattress.
  • Positions Obtained by Hand Remote: Backrest, Hi – Low, Trendelenburg & Reverse Trendelenburg.
  • Leg end section can slide under the main section.
  • S.S Telescopic I.V. Rod with 4 hooks
  • Removable S.S. Tray
  • Provided with adjustable S.S. Grip Handles on both sides.
  • Comes with a pair of Lithotomy Crutches mounted on SS Rod.
  • Finish: Pretreated and epoxy powder coated.



TECHNICAL SPECIFICATIONS

Overall Size: L2180 x W1020mm

Height: 520 to 890mm

Back Rest: 0 to 65 Degree

Trendlenburg & Reverse TRB: 0- 20 Degrees

Safe Working Load: 180 kg

Patient load Bearing Capacity: 150 kg.
